Feature:
- Connection of up to 8 local IO-Link sensors
- Freely usable CPU processing power of 1.6 GHz Quad-Core ARM 64-bit
- Sensor data and information accessible via internal MQTT bus
- Including IO-Link web configurator and data converter from IO-Link to MQTT
- Extendable by IoT applications developed by the customer using any containers
- Central device/container management possible via cloud portal
| General | Part number | 1915.231 |

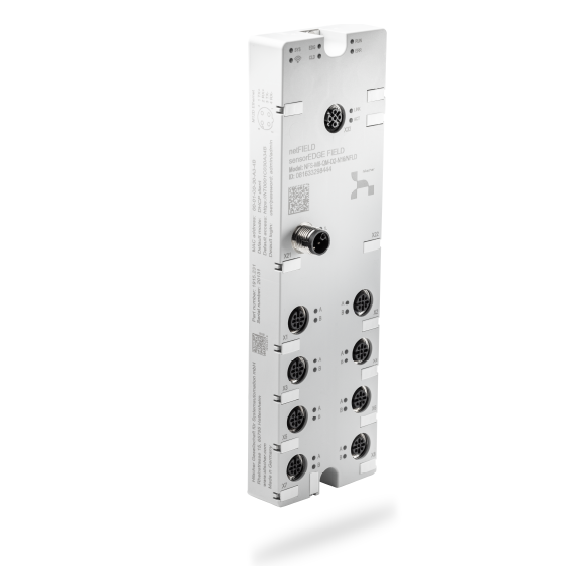

| Article name | NFS-M8-QM-D2-N16/NFLD | |
| Processor | CPU | 1.6 GHz quad-core ARM Cortex-A53 64Bit |
| Memory | RAM | 2 GB LPDDR4 |
| Storage | 16 GB MLC eMMC, appr. 25 TBW (Terabytes Written) | |
| Mechanics and housing | Dimension | 200 mm x 60 mm x 30 mm |
| Weight | 420 g | |
| Housing material | Glass fiber reinforced plastic (PBT) according to UL 94-V0 | |
| Housing color | RAL 7035 (“light gray”) | |
| Degree of protection | IP67 (EN 60529) | |
| Protection class | III (EN 61140) | |
| Conformity declarations | CE | Yes |
| UKCA | Yes | |
| RoHS | Yes | |
| REACH | Yes | |
| Ethernet LAN interface | Type | 10/100 MBit/s Ethernet port (eth0) |
| Connector | M12, D-coded, female, 4-pin. | |
| IO-Link | Type | IO-Link Master, Class A, 8 ports |
| Connector | 8 x M12 A-coded, female, 5-pole |
