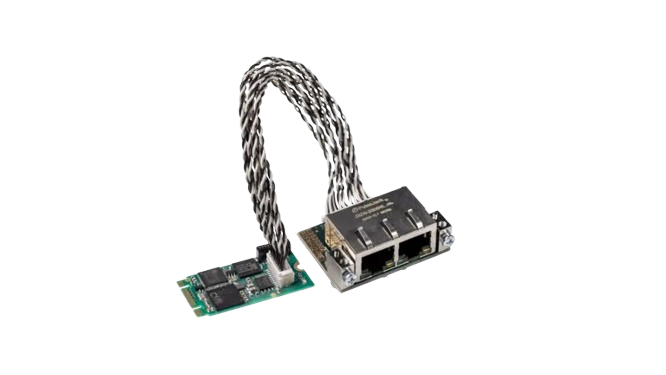

$CIFX M224290BM-RE\F$

Advantage:

Smallest multiprotocol PC cards on the automation market
Universal card for all Real-Time Ethernet protocols
Uniform user interface for all protocols and card formats
Easy integration due to a large variety of drivers
Includes a detached network interface (15 cm or 20 cm)
For an extended temperature range of up to 70 °C

Product	Product name	CIFX M224290BM-RE\F
	Part number	1445.101
	Brief description	PC card cifX PCI Express M.2 Real-Time Ethernet Slave
	Function	Communication Interface M.2 2242 Key B+M with PCI Express M.2 and Ethernet interface
Communication controller	Type	netX 90
Integrated Memory	RAM	8 MByte SDRAM
Integrated Memory	FLASH	8 MByte + 1 MByte
Power supply	Supply voltage	+3.3 V DC ±5 %
	Maximum current (typically)	330 mA (at 3.3 V), maximum
	Connector	via PCI Express Bus M.2
System interface	Bus type	PCI Express M.2, one-lane port
	Data access	Dual-port memory
	Connector type	M.2-type 2242-D3, Dual key B-M (Socket 1)
	Dual-port memory size	64 KByte
	Data width	32 bit
	Transmission rate	33 MHz
Communication interface	Communication standard	Ethernet
	Interface type	10BASE-T/100BASE-TX, isolated
	Auto negotiation	Supported
	Auto cross over	Supported
	Connector	Cable connector Ethernet (JST BM20B-SRDS-G-TF, 1.0 mm pitch) to connect an AIFX-V2-RE
Displays	LED display	SYS (System status)
		COM 0 (Communication status) on AIFX-V2-RE
		COM 1 (Communication status) on AIFX-V2-RE
Permitted ambient conditions	Operating temperature range	-20 °C ... +60 °C; with air flow of 0.5 m/s also up to +70 °C
	Storage temperature range	-40 °C ... +85 °C
	Humidity	10 % … 95 % relative humidity, no condensation permitted
	Environment	The device must be used only in a pollution degree 2 environment (or better)
	Altitude	0 m … 2000 m
Device	Dimensions (L x W x H)	42 mm x 22 mm x 7 mm
Configuration	Configuration software	Communication Studio
Configuration	Download firmware and configuration	Device Explorer
Conformity	RoHS	Yes
Conformance with EMC directives	CE sign	Yes
	UKCA sign	Yes
	Emission	DIN EN 61000-6-3 / BS EN 61000-6-3
	Immunity	DIN EN 61000-6-2 / BS EN 61000-6-2
