Product Highlights
- Secure industrial communication plug-in module for field devices
- netX 90 chip carrier for compact hardware designs
- One hardware for all Industrial Ethernet, fieldbus, and IIoT protocols
- CRA-compliant communication module
- Module with modern SMT connector and robust screw fastening
netRAPID IC enables secure, CRA-compliant industrial communication in compact field devices such as drives, measurement systems, welding equipment, weighing cells, and laser devices. As a pluggable chip carrier module, it simplifies integration, reduces implementation effort, and shortens time-to-market.
Its compact format provides greater flexibility in baseboard design, while the pluggable concept reduces production risk and simplifies service and replacement. A single hardware platform for all major Industrial Ethernet (Profinet、EtherCAT、EtherNet/IP )、Fieldbus(Profibus、DeviceNet)and IIoT networks(OPCUA、MQTT) reduces hardware variants, maintenance effort, and system complexity.
Based on proven netX technology, netRAPID IC combines secure communication, IIoT readiness, and long-term availability in a single platform. It supports future-proof device designs and use cases such as condition monitoring and predictive maintenance.
Its compact format provides greater flexibility in baseboard design, while the pluggable concept reduces production risk and simplifies service and replacement. A single hardware platform for all major Industrial Ethernet (Profinet、EtherCAT、EtherNet/IP )、Fieldbus(Profibus、DeviceNet)and IIoT networks(OPCUA、MQTT) reduces hardware variants, maintenance effort, and system complexity.
Based on proven netX technology, netRAPID IC combines secure communication, IIoT readiness, and long-term availability in a single platform. It supports future-proof device designs and use cases such as condition monitoring and predictive maintenance.

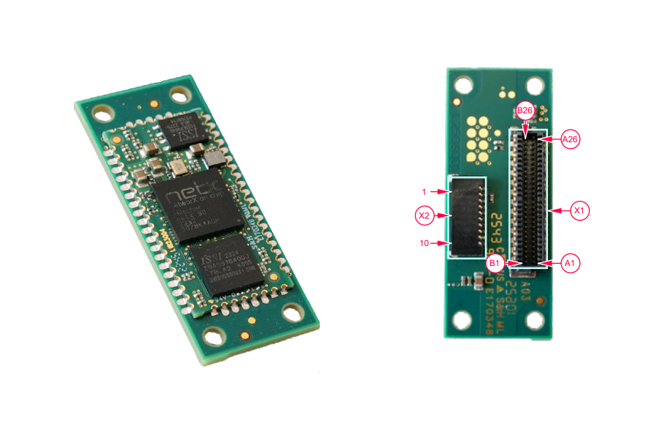

| NRP H90IC\F8D8 (preloaded) | Parameter | Value |
| Product | Part number | 7680.102 |
| Brief description | Pluggable netX 90 chip carrier with additional memory | |
| Network controller | netX | netX 90 |
| Integrated Memory | RAM | 8 MB |
| FLASH | 8 MB | |
| Power supply and current | Supply voltage | +3.3 V DC ± 5 % |
| Maximum current (typically, maximum) | 185 mA (typically), 190 mA (maximum) | |
| Power consumption (typical) | 615 mW | |
| Power connector | Via SMT connector | |
| Host interface | Type | Serial dual-port memory (SPI, mode 3) |
| Connector | 52-pin SMT connector | |
| Grid | 0.8 mm grid | |
| Dual-port memory size | 32 KB | |
| Transmission rate | Max. 50 MHz | |
| Communication interface | Interface type | Ethernet or fieldbus signals |
| Diagnostic interface | Type | UART |
| Connector | Signals at SMT connector | |
| Display | LED displays | Signals for Ethernet status at SMT connector |
| Signals for fieldbus status at SMT connector X1 or connector X2 | ||
| Permitted ambient conditions | Ambient temperature range for operation | -20 °C ... +85 °C (Air flow during measurment: 0.375 m/s) |
| Ambient temperature range for storage | -40 °C ... +85 °C | |
| Humidity range | 10 % … 95 % relative humidity, no condensation permitted | |
| Environment | The device must be used only in a pollution degree 2 environment (or better) | |
| Altitude | 0 m … 2000 m | |
| Device | Dimensions (L x W x H) | 18 mm x 45 mm x 9.7 mm |
| Weight | 6.5 g | |
| Mounting/Installation | Plug-in connection and screw fastening | |
| Configuration | Configuration software | Communication Studio |
| Device Explorer (firmware update) | ||
| API | Yes | |
| Conformity | RoHS | Yes |
| Conformance with EMC directives | CE sign | yes |
| UKCA sign | yes |
