Product Highlights
- Premium Upgrade Choice: Compliant with CRA (Cyber Resilience Act) security standards; the official successor to the proven CIFX 50E-DP slave interface.
- Seamless System Integration: Features a wide range of drivers and a standardized API, significantly reducing software development and system integration complexity.
- Cost-Effective System Upgrade: Provides an economical communication interface update solution for PC-based industrial control applications.
- Secure Communication Guarantee: Integrated hardware, firmware, and tools to ensure industrial network security and communication stability.
netX 90-based cifX PC cards – compact, powerful and flexible
For PC-based automation, the netX 90-based cifX PC cards in the formats M.2, PCIe and miniPCIe halfsize provide a powerful communication solution designed for future requirements. As a standardized platform, the cifX family supports all common Industrial Ethernet, Industrial IoT and fieldbus systems.
The complete protocol stack is executed directly on the PC card. Data exchange with the host system is handled efficiently via dual-port memory. Due to Hilscher’s unified platform strategy, all cifX cards use the same drivers and tools, regardless of the protocol or card format.
The proven netX technology enables all common Industrial Ethernet protocols to be implemented on a single hardware platform. Protocol changes are handled flexibly by loading different firmware – without any hardware modifications.
Maximum flexibility for your application
Whether compact M.2 modules for industrial PCs with limited space, classic PCIe cards for high-performance systems, or miniPCIe variants for specific industrial requirements – netX 90-based cifX cards offer a suitable solution for any application.
A broad range of device drivers as well as a free C toolkit simplify integration into different operating systems and software environments.
Future-ready through continuous development
The market for PC-based automation continues to evolve – and the cifX family evolves with it. Continuous expansion with new standards, protocols and formats like M.2, PCIe and miniPCIe half-size ensures long-term compatibility with future requirements.
With netX 90-based cifX PC cards, you get a compact, powerful and flexible communication solution – designed for modern industrial PC architectures.
For PC-based automation, the netX 90-based cifX PC cards in the formats M.2, PCIe and miniPCIe halfsize provide a powerful communication solution designed for future requirements. As a standardized platform, the cifX family supports all common Industrial Ethernet, Industrial IoT and fieldbus systems.
The complete protocol stack is executed directly on the PC card. Data exchange with the host system is handled efficiently via dual-port memory. Due to Hilscher’s unified platform strategy, all cifX cards use the same drivers and tools, regardless of the protocol or card format.
The proven netX technology enables all common Industrial Ethernet protocols to be implemented on a single hardware platform. Protocol changes are handled flexibly by loading different firmware – without any hardware modifications.
Maximum flexibility for your application
Whether compact M.2 modules for industrial PCs with limited space, classic PCIe cards for high-performance systems, or miniPCIe variants for specific industrial requirements – netX 90-based cifX cards offer a suitable solution for any application.
A broad range of device drivers as well as a free C toolkit simplify integration into different operating systems and software environments.
Future-ready through continuous development
The market for PC-based automation continues to evolve – and the cifX family evolves with it. Continuous expansion with new standards, protocols and formats like M.2, PCIe and miniPCIe half-size ensures long-term compatibility with future requirements.
With netX 90-based cifX PC cards, you get a compact, powerful and flexible communication solution – designed for modern industrial PC architectures.
| Category (分類) | Parameter (參數) | Value (數值) |

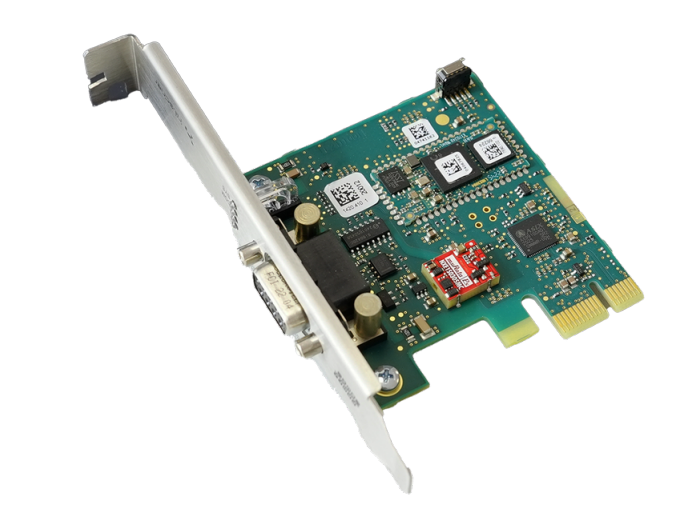

| Product | Product name | CIFX PCIE90-DPS |
| Part number | 1420.410 | |
| Brief description | PCI Express PC card cifX PROFIBUS DP Slave | |
| Function | Communication interface with PCI Express and PROFIBUS interface | |
| Communication controller | Type | netX 90 |
| Power supply | Supply voltage | +3.3 V DC ±5 % |
| Typical current, maximum current | 270 mA (at 3.3 V), 280 mA (at 3.6 V) | |
| Connector | Via PCI Express bus | |
| Typical power consumption | 900 mW | |
| System interface | Bus type | PCI Express, one-lane port |
| Data access | Dual-port memory | |
| Connector type | PCI Express | |
| Dual-port memory size | 32 KB | |
| Data width | 32 bit | |
| Transmission rate | 2 GBit/s | |
| Communication interface | Communication standard | PROFIBUS |
| Interface type | RS-485, isolated | |
| Connector | D-Sub socket, 9-pin | |
| Displays | LED display | SYS (System status) COM (Communication status) |
| Operating element | Rotary switch slot number (card ID) | To set the slot number (card ID) |
| Permitted ambient conditions | Operating temperature range | -20 °C ... +70 °C (Air flow during measurment: 0.375 m/s, 50 %) |
| Storage temperature range | -40 °C ... +85 °C | |
| Humidity | 10 % … 95 % relative humidity, no condensation permitted | |
| Environment | The device must be used only in a pollution degree 2 environment (or better) | |
| Altitude | 0 m … 2000 m | |
| Device | Dimensions (L x W x H) | 77.3 mm x 21.8 mm x 121.2 mm |
| Weight | 51 g | |
| Mounting/Installation | PCI Express x1 slot (3.3 V) | |
| Configuration | Configuration software | Communication Studio |
| Download firmware and configuration | Device Explorer | |
| API | Yes | |
| Conformity | RoHS | Yes |
| CE sign | Yes | |
| UKCA sign | Yes | |
| Emission | DIN EN 61000-6-3 / BS EN 61000-6-3 | |
| Immunity | DIN EN 61000-6-2 / BS EN 61000-6-2 |
